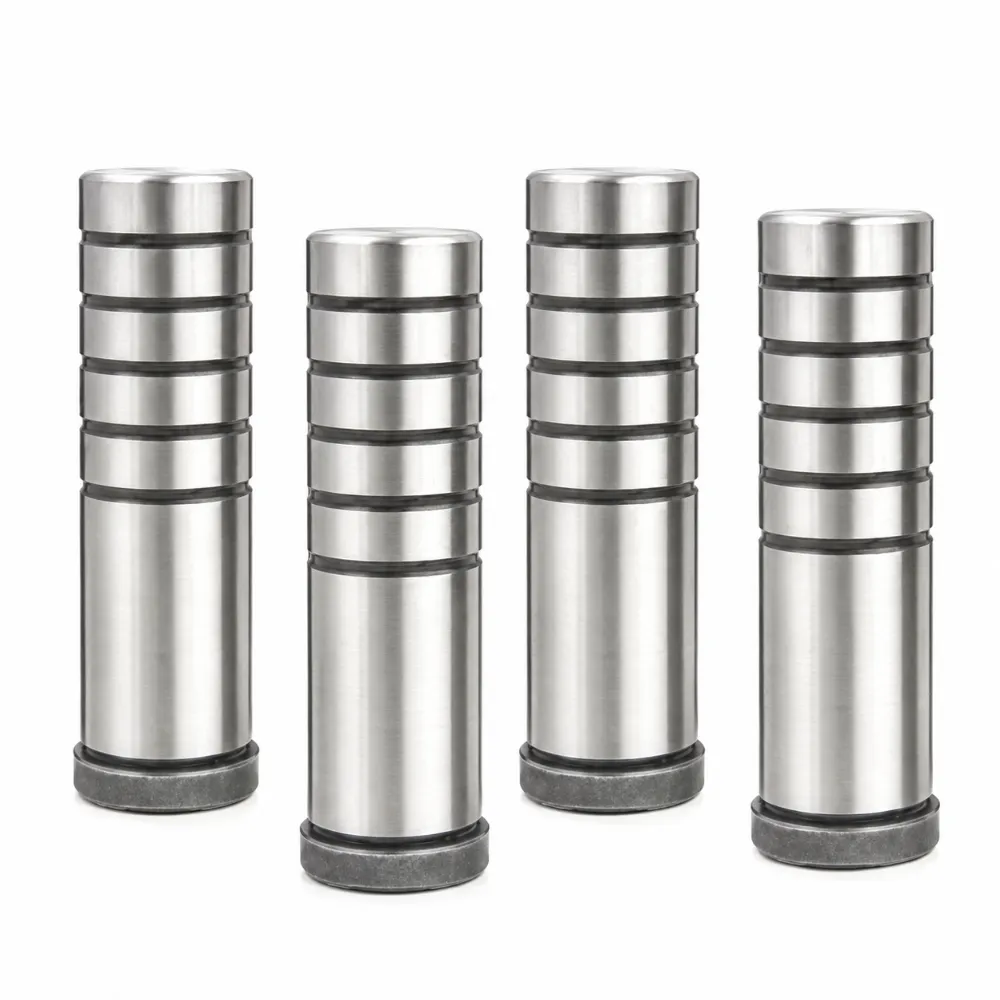

排莢板ガイドポスト
Ejector Plate Guide Post is engineered to support accurate movement within mold ejection mechanisms and precision molding equipment. Built from high-strength steel and finished with advanced grinding technology, it offers excellent structural stability and dependable guiding performance. The component helps maintain smooth ejector plate travel while reducing operational resistance and mechanical stress. Suitable for a broad range of injection molding applications, it contributes to improved mold efficiency, enhanced production consistency, and long-lasting performance in demanding industrial environments.
- Smooth Ejector Plate Travel: Ensures stable movement during mold operation.
- High Strength Steel Structure: Provides durability under demanding working conditions.
- Reduced Friction During Operation: Helps improve efficiency and component longevity.
- Ideal For Precision Molds: Supports accurate positioning in complex assemblies.
製品説明
はじめに
Ejector Plate Guide Post is a precision guiding component designed for injection molds, 型のベース, and plastic molding systems. Installed within the ejector assembly, it provides accurate linear guidance for the ejector plate during repeated mold opening and ejection cycles. Proper alignment of the ejector system is essential for maintaining smooth movement, preventing component interference, and ensuring consistent product quality throughout the manufacturing process.
Manufactured from premium-grade bearing steel such as SUJ2 or GCr15, the Ejector Plate Guide Post is produced through precision machining, 熱処理, グラインド, 研磨プロセス. These manufacturing procedures provide excellent hardness, 次元安定性, 耐摩耗性. The precision-ground surface helps reduce friction during operation while improving movement accuracy and extending the service life of the mold system. Its robust construction enables reliable performance under continuous production conditions and demanding industrial environments.
Widely used in automotive plastic parts, consumer electronics, 医療機器の部品, household appliance products, 包装型, and industrial plastic manufacturing, Ejector Plate Guide Posts are available in a variety of diameters and lengths to accommodate different mold designs. Custom materials, 寸法, and surface treatments can also be provided according to specific application requirements. Designed for long-term reliability and precision operation, these guide posts help improve mold efficiency, reduce maintenance costs, and support stable high-volume production.
仕様
| パラメータ | 仕様 |
|---|---|
| 製品名 | 排莢板ガイドポスト |
| 材料 | SUJ2 / GCr15 ベアリングスチール |
| 表面仕上げ | 精密グラウンド & 磨き上げられた |
| 硬度 | HRC 58-62 |
| 直径範囲 | Ø10 mm – Ø50 mm |
| 長さ範囲 | 50 mm – 400 mm |
| 直線性 | ≤0.003 mm/100 mm |
| 表面処理 | ハードクロームメッキはオプション |
| 誘導タイプ | 排莢板誘導 |
| 設置タイプ | プレスフィット |
| 精密等級 | 高精度 |
| 運用状況 | 連続型の操作 |
| 艦歴 | 長期的な産業利用 |
| カスタマイズ | OEM対応 & ODMが入手可能 |
3つの主要なカスタマイズ要素, あなたのニーズに合わせた
異なるカスタマイズ方法を組み合わせて、さまざまな要件に合わせること.
精密製造, 優れた品質
最適化された排出システム誘導
Provides dependable directional support for ejector plate assemblies, helping maintain synchronized movement and improving overall mold performance during continuous production cycles.
金型の運用信頼性向上
Engineered to deliver consistent guiding accuracy under repetitive molding conditions, reducing unexpected interruptions and supporting stable manufacturing efficiency over time.
金型アセンブリの精密フィット
Manufactured with strict dimensional control to ensure accurate integration with ejector systems, promoting smoother movement and improved component compatibility.
複雑な金型構造に適しています
Designed to perform effectively in multi-cavity molds and sophisticated tooling configurations where dependable guidance and positioning are essential.
洗練されたサービス, 配達時間短縮
設計レビューから納品まで, プロセス全体を通じて、専任の個別フォローアップを提供しています.
コンサルテーション→図面の提供→デザインレビュー & 見積もり→注文処理→品質検査→時間通りの納品→アフターフォローアップ
私たちの利点
25年以上のエンジニアリング経験に裏付けられています, 当社のチームは、カスタマイズされた金型設計や精密加工から本格的な生産まで、堅牢な品質保証システムと積極的な顧客サービスに支えられ、包括的なサービスを提供しています. ISO9001認定, ISO14001, IATF 16949, 私たちは常に品質の卓越性を追求しています, イノベーション, そして顧客満足度.
100人以上,000 在庫車両, 標準製品には2時間以内の配送が可能です.
三段階検査システムの導入—初期材料検査, 進行中検査, および最終検査.
大量の在庫と迅速な納品, 100%の製品検査による期限内納品の確保.
適用範囲
さまざまな業界で好まれる選択肢.
FAQ
What is an Ejector Plate Guide Post?
An Ejector Plate Guide Post is a precision component used in injection molds to guide the ejector plate during ejection cycles. It helps maintain accurate movement and stable mold operation.
What materials are commonly used for Ejector Plate Guide Posts?
Most Ejector Plate Guide Posts are manufactured from high-quality bearing steel such as SUJ2 or GCr15. These materials offer excellent hardness, 耐摩耗性, そして長期の勤続.
Where are Ejector Plate Guide Posts used?
They are widely used in injection molds for automotive parts, consumer electronics, 医療機器, 家庭用電化製品, packaging products, and industrial plastic components.
Can Ejector Plate Guide Posts be customized?
はい. カスタム直径, 長さ, 材料, 公差, and surface treatments can be produced according to customer drawings and specific mold requirements.
What are the benefits of using an Ejector Plate Guide Post?
It helps improve ejector plate alignment, ensures smoother movement, reduces component wear, enhances mold reliability, and supports consistent production quality over long operating periods.
