外側ガイドポスト

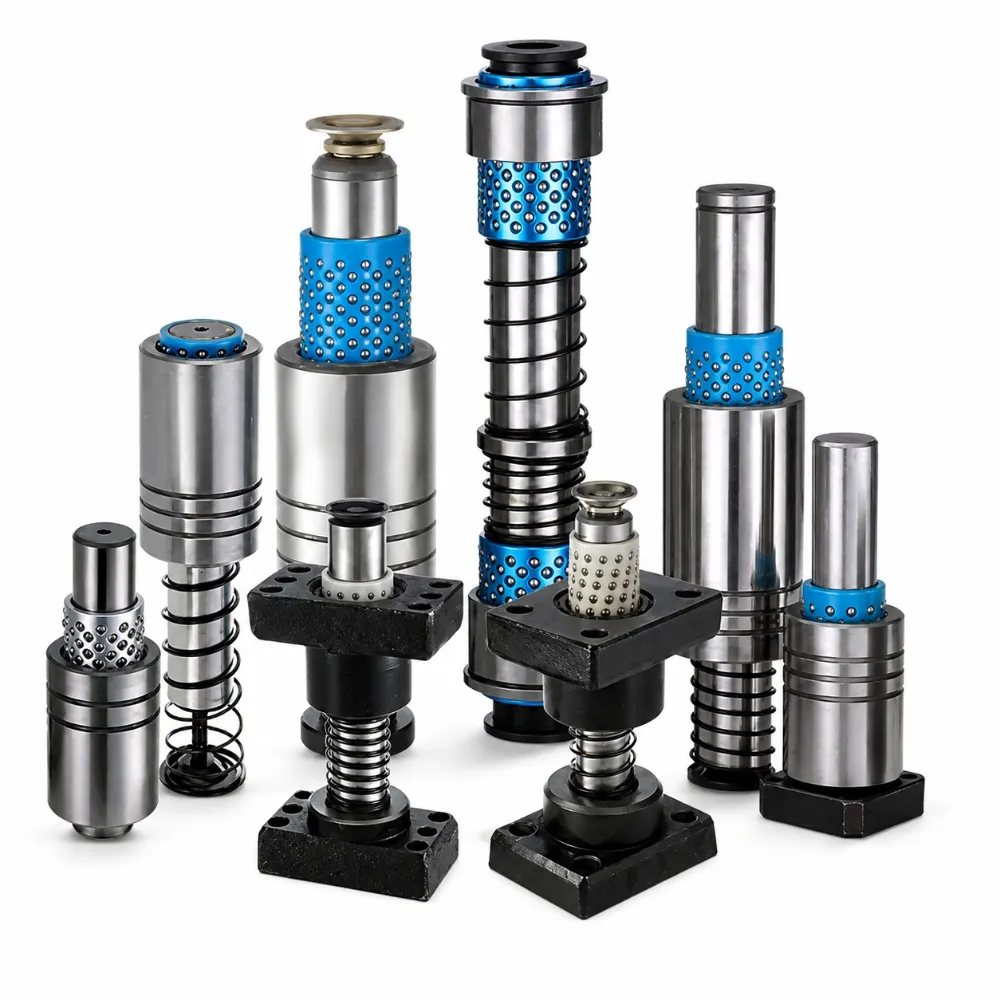

Outer Guide Post provides dependable external guidance for die sets, 型, and stamping equipment requiring precise linear movement. Engineered with durable steel construction and advanced manufacturing processes, it delivers smooth operation and consistent positioning throughout repeated production cycles. The external mounting design enhances accessibility and system stability while supporting accurate component alignment.
- Supports Accurate External Guidance Systems: Delivers dependable alignment for demanding tooling.
- Resists Deformation During Heavy Operation: Maintains structural integrity under continuous loads.
- Facilitates Faster Equipment Maintenance Tasks: Simplifies inspection and component replacement procedures.
- Compatible With Multiple Die Configurations: Adapts easily to diverse tooling applications.
製品説明
はじめに
Outer Guide Post is an important guiding component designed for stamping dies, 型のベース, セット, and various precision tooling systems. Positioned outside the die assembly, it helps maintain accurate alignment between moving sections during operation. Reliable guidance is essential for ensuring dimensional accuracy, reducing production errors, and improving the overall quality of stamped or formed products. Its stable structure makes it suitable for both standard and high-precision manufacturing environments.
Manufactured from premium-grade bearing steel and processed through precision machining, 熱処理, and grinding operations, the Outer Guide Post offers excellent hardness, 耐摩耗性, and mechanical strength. The smooth surface finish helps reduce friction during continuous movement, while the hardened construction enhances durability under demanding working conditions. These characteristics contribute to improved operational stability and longer service life for die and mold systems.
Outer Guide Posts are widely used in automotive manufacturing, 電子機器生産, household appliance fabrication, aerospace tooling, 産業機械, and metal forming applications. 複数の直径で提供, 長さ, and mounting configurations, they can accommodate a wide range of tooling requirements. カスタムマテリアル, 寸法, and surface treatments are also available to support specialized projects, providing manufacturers with dependable guiding solutions for precision production processes.
仕様
| パラメータ | 仕様 |
|---|---|
| 製品名 | 外側ガイドポスト |
| 素材 | SUJ2 / GCr15 ベアリングスチール |
| 表面仕上げ | 精密グラウンド |
| 硬度 | HRC 58-62 |
| 誘導タイプ | 外部誘導システム |
| 直径範囲 | Ø20 mm – Ø80 mm |
| 長さ範囲 | 100 mm – 600 mm |
| 表面処理 | ハードクロームメッキはオプション |
| 直線性 | ≤0.005 mm/100 mm |
| 同心率 | 高精度 |
| 設置タイプ | プレスフィット/ボルトマウント |
| 運用環境 | 産業用工具システム |
| 艦歴 | 長期連続運転 |
| カスタマイズ | 純正 & ODMが入手可能 |
3つの主要なカスタマイズ要素, あなたのニーズに合わせた
異なるカスタマイズ方法を組み合わせて、さまざまな要件に合わせること.
精密製造, 優れた品質
構造安定性の向上
The external guiding design strengthens overall die assembly support, helping maintain consistent positioning accuracy while reducing unwanted movement during demanding manufacturing operations.
優れた防錆性
Optional surface treatments provide additional protection against moisture, contaminants, and harsh workshop environments, helping preserve component performance over extended periods.
効率的なアセンブリ統合
Designed for convenient installation and compatibility with various die set configurations, allowing manufacturers to simplify setup procedures and reduce adjustment time.
信頼性の高い次元保持
High-quality materials and controlled heat-treatment processes help maintain critical dimensions under repeated mechanical stress, supporting long-term accuracy in production applications.
洗練されたサービス, 配達時間短縮
設計レビューから納品まで, プロセス全体を通じて、専任の個別フォローアップを提供しています.
コンサルテーション→図面の提供→デザインレビュー & 見積もり→注文処理→品質検査→時間通りの納品→アフターフォローアップ
私たちの利点
25年以上のエンジニアリング経験に裏付けられています, 当社のチームは、カスタマイズされた金型設計や精密加工から本格的な生産まで、堅牢な品質保証システムと積極的な顧客サービスに支えられ、包括的なサービスを提供しています. ISO9001認定, ISO14001, IATF 16949, 私たちは常に品質の卓越性を追求しています, イノベーション, そして顧客満足度.
100人以上,000 在庫車両, 標準製品には2時間以内の配送が可能です.
三段階検査システムの導入—初期材料検査, 進行中検査, および最終検査.
大量の在庫と迅速な納品, 100%の製品検査による期限内納品の確保.
適用範囲
さまざまな業界で好まれる選択肢.
FAQ
What is an Outer Guide Post used for?
An Outer Guide Post is used to guide and align moving sections of die sets, 型, and stamping tools. It helps maintain positioning accuracy and supports stable operation during manufacturing processes.
What materials are commonly used for Outer Guide Posts?
Most Outer Guide Posts are manufactured from high-quality bearing steel such as SUJ2 or GCr15. これらの材料は優れた硬度を提供します, 耐摩耗性, そして長期的な耐久性.
Can Outer Guide Posts be customized?
はい. カスタム直径, 長さ, 取り付けスタイル, 表面処理, and material specifications can be produced according to customer drawings or specific application requirements.
Which industries commonly use Outer Guide Posts?
Outer Guide Posts are widely used in automotive stamping, 電子製造, appliance production, aerospace tooling, 金属加工, 産業機械, and precision mold applications.
How do I select the correct Outer Guide Post?
Selection depends on factors such as die size, 荷重要件, 動作速度, installation method, and tooling design. Technical specifications and application details help determine the most suitable model.
