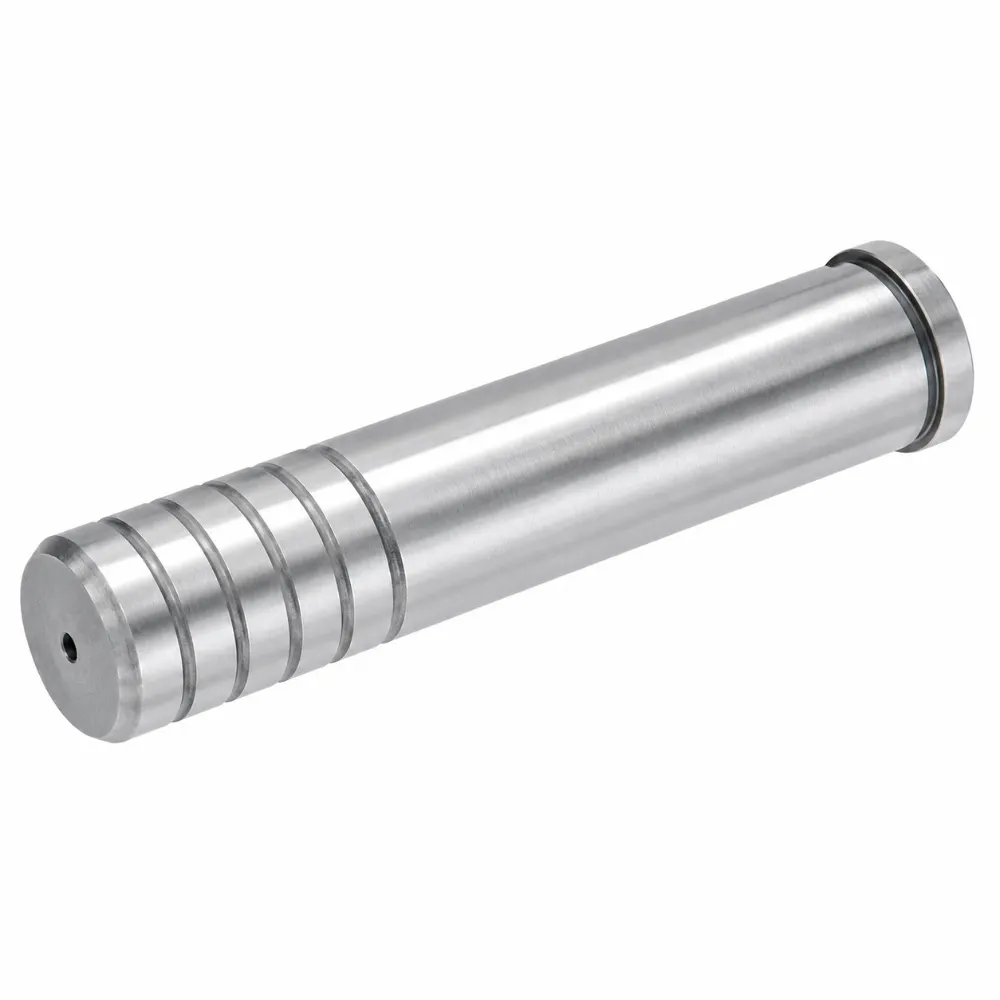

ストリッパーガイドピン
Stripper Guide Pin is developed for precision guiding applications in stamping tools and die assemblies. Its durable construction enables accurate positioning of stripper plate components while supporting smooth and controlled movement during production. Manufactured with strict quality standards, the guide pin delivers reliable mechanical performance and excellent resistance to long-term operational stress.
- Enhances Precision During Plate Movement: Supports controlled motion throughout stamping cycles.
- Maintains Accuracy Under Repeated Impact: Delivers dependable performance during continuous operation.
- プログレッシブダイ用途に最適化: Suitable for demanding precision tooling systems.
- Supports Efficient High Volume Production: Helps improve productivity and process consistency.
製品説明
はじめに
Stripper Guide Pin is an essential component used in stamping dies, プログレッシブ・ダイズ, and precision tooling systems where accurate stripper plate movement is required. It helps guide and support the stripper plate throughout the stamping cycle, ensuring smooth operation and maintaining proper alignment between critical die components. Reliable guidance contributes to improved product consistency, reduced operational errors, and enhanced production efficiency in demanding manufacturing environments.
Manufactured from premium bearing steel and processed through precision machining, 熱処理, and grinding technologies, the Stripper Guide Pin offers outstanding dimensional accuracy and long-lasting durability. The hardened surface helps resist wear caused by repeated movement, while the precision-ground finish promotes smooth operation and minimizes friction. These characteristics allow the component to perform reliably during continuous production while helping protect surrounding tooling parts from excessive wear.
Stripper Guide Pins are widely applied in automotive component manufacturing, electronic stamping, 家庭用電化製品の製造, hardware processing, and industrial metal forming operations. さまざまな直径で提供されています, 長さ, および許容等級, they can be integrated into a wide range of die designs and tooling systems. Custom manufacturing options are also available to meet specific project requirements, providing dependable guiding solutions for precision stamping applications across multiple industries.
仕様
| パラメータ | 仕様 |
|---|---|
| 製品名 | ストリッパーガイドピン |
| 素材 | SUJ2 / GCr15 |
| 硬度 | HRC 58-62 |
| 表面仕上げ | 精密グラウンド |
| 直径範囲 | Ø6-Ø25 mm |
| 長さ範囲 | 20-250mm |
| 直線性 | ≤0.003 mm/100 mm |
| 表面処理 | オプションのハードクローム |
| 設置方法 | プレスフィット |
| 精密等級 | 高精度 |
| 税関サービス | 純正 & ODM |
3つの主要なカスタマイズ要素, あなたのニーズに合わせた
異なるカスタマイズ方法を組み合わせて、さまざまな要件に合わせること.
精密製造, 優れた品質
ストリッパープレート制御の改良
Provides accurate support for stripper plate movement, helping maintain consistent motion throughout stamping operations while contributing to improved process stability and product quality.
コンパクト設計統合
Engineered for efficient installation within limited tooling spaces, allowing seamless integration into complex die assemblies without compromising operational performance or reliability.
一貫した繰り返しパフォーマンス
Designed to perform reliably during continuous production cycles, helping maintain guiding accuracy and operational consistency even under frequent repetitive stamping conditions.
部品相互作用の摩耗減少
Helps minimize direct contact between critical tooling parts, lowering wear rates and supporting smoother operation throughout long-term manufacturing applications.
洗練されたサービス, 配達時間短縮
設計レビューから納品まで, プロセス全体を通じて、専任の個別フォローアップを提供しています.
コンサルテーション→図面の提供→デザインレビュー & 見積もり→注文処理→品質検査→時間通りの納品→アフターフォローアップ
私たちの利点
25年以上のエンジニアリング経験に裏付けられています, 当社のチームは、カスタマイズされた金型設計や精密加工から本格的な生産まで、堅牢な品質保証システムと積極的な顧客サービスに支えられ、包括的なサービスを提供しています. ISO9001認定, ISO14001, IATF 16949, 私たちは常に品質の卓越性を追求しています, イノベーション, そして顧客満足度.
100人以上,000 在庫車両, 標準製品には2時間以内の配送が可能です.
三段階検査システムの導入—初期材料検査, 進行中検査, および最終検査.
大量の在庫と迅速な納品, 100%の製品検査による期限内納品の確保.
適用範囲
さまざまな業界で好まれる選択肢.
FAQ
What is a Stripper Guide Pin?
A Stripper Guide Pin is a precision guiding component used in stamping dies to control the movement of the stripper plate. It helps maintain accurate alignment and smooth operation during the stamping process.
What materials are used for Stripper Guide Pins?
Stripper Guide Pins are commonly manufactured from high-quality bearing steel such as SUJ2 or GCr15. これらの材料は優れた硬度を提供します, 耐摩耗性, そして長期の勤続.
Where are Stripper Guide Pins typically used?
これらはプログレッシブダイに広く使われています, 精密プレス金型, 自動車用金型, 電子部品製造, 金属成形装置, and industrial punching applications.
Can Stripper Guide Pins be customized?
はい. カスタム直径, 長さ, 公差, 表面処理, and material specifications can be produced according to customer drawings or specific tooling requirements.
How do Stripper Guide Pins improve die performance?
By providing stable and accurate guidance for the stripper plate, they help reduce misalignment, minimize component wear, 生産の一貫性を向上させる, and extend tooling service life.
