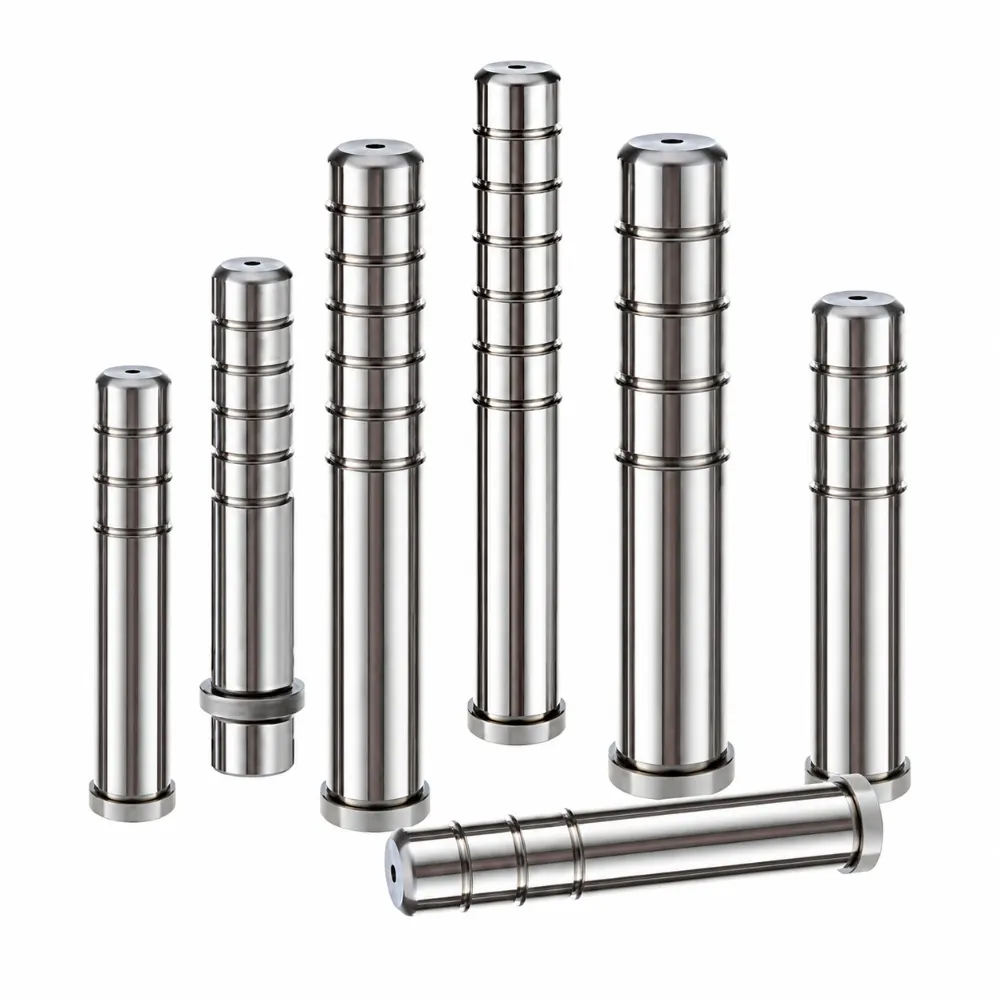

金属スタンピング ザ・ガイドポスト
Metal Stamping Die Guide Posts are designed to provide dependable guidance and structural support for precision die assemblies. Manufactured from premium-grade steel and processed with advanced machining technology, they deliver smooth operation and excellent resistance to deformation during repeated production cycles. These components help improve die stability, increase production consistency, and protect critical tooling parts from premature damage. Suitable for a wide range of metal forming and stamping applications, they offer reliable performance in both standard and customized tooling systems.
- Optimized Surface Hardness Performance: Improves durability against continuous friction effectively.
- Stable Operation Under High Speeds: Maintains smooth guidance during rapid stamping.
- Precision Ground For Consistency: Ensures uniform movement across production cycles.
- Adaptable To Diverse Tooling Systems: Supports multiple industrial die configurations reliably.
製品説明
はじめに
Metal Stamping Die Guide Post is an essential component used in stamping dies, プログレッシブ・ダイズ, および精密金型システム. It is designed to ensure accurate alignment between the upper and lower die sections during production, helping to improve stamping accuracy and maintain consistent product quality. Manufactured from high-quality bearing steel, the guide post offers excellent dimensional stability, 滑らかな動き, and reliable performance in demanding industrial environments.
Through precision grinding, 熱処理, and surface finishing processes, the guide post achieves outstanding hardness, 耐摩耗性, 耐久性. Its robust construction helps reduce friction and component wear, extending the service life of both the die set and related tooling components. The precision-guided movement also minimizes alignment errors, reducing downtime and improving overall manufacturing efficiency.
Metal Stamping Die Guide Posts are widely used in automotive parts manufacturing, 電子機器生産, home appliance components, aerospace applications, 金属加工, and industrial equipment industries. さまざまな直径で提供されています, 長さ, and installation styles, these guide posts can meet different tooling requirements and industry standards. Custom sizes, 材料, and surface treatments are also available to support OEM and ODM projects, providing reliable solutions for precision stamping and forming applications worldwide.
仕様
| パラメータ | 仕様 |
|---|---|
| 製品名 | 金属スタンピング ザ・ガイドポスト |
| 素材 | SUJ2 / GCr15 ベアリングスチール |
| 表面仕上げ | 精密グラウンド & 磨き上げられた |
| 硬度 | HRC 58-62 |
| 耐性 | ±0.005mm |
| 直線性 | ≤0.003 mm/100 mm |
| 直径範囲 | Ø10 mm – Ø80 mm |
| 長さ範囲 | 50 mm – 500 mm |
| 表面処理 | Hard Chrome Plating (オプション) |
| 誘導タイプ | プレーンベアリング/ボールベアリング |
| 設置タイプ | プレスフィット/ショルダータイプ |
| 潤滑 | オイル溝はオプション |
| 標準 | 出発, 彼, MISUMI Standard |
| 艦歴 | 長期的な産業利用 |
| カスタマイズ | 純正 & ODMが入手可能 |
3つの主要なカスタマイズ要素, あなたのニーズに合わせた
異なるカスタマイズ方法を組み合わせて、さまざまな要件に合わせること.
精密製造, 優れた品質
優れたアライメント精度
Engineered with tight manufacturing tolerances to maintain precise die positioning, helping reduce dimensional variation, 再現性の向上, and ensure consistent stamping performance throughout production cycles.
搭載能力の強化
Designed to withstand continuous high-pressure operations, providing stable guidance under demanding working conditions while supporting heavy-duty stamping and forming applications effectively.
メンテナンスの削減
The optimized surface finish and hardened structure minimize wear between moving components, lowering maintenance frequency and helping manufacturers reduce long-term operating costs.
柔軟なカスタマイズオプション
複数の直径で提供, 長さ, 取り付けスタイル, and material grades, allowing easy adaptation to various die set designs and specialized industrial requirements.
洗練されたサービス, 配達時間短縮
設計レビューから納品まで, プロセス全体を通じて、専任の個別フォローアップを提供しています.
コンサルテーション→図面の提供→デザインレビュー & 見積もり→注文処理→品質検査→時間通りの納品→アフターフォローアップ
私たちの利点
25年以上のエンジニアリング経験に裏付けられています, 当社のチームは、カスタマイズされた金型設計や精密加工から本格的な生産まで、堅牢な品質保証システムと積極的な顧客サービスに支えられ、包括的なサービスを提供しています. ISO9001認定, ISO14001, IATF 16949, 私たちは常に品質の卓越性を追求しています, イノベーション, そして顧客満足度.
100人以上,000 在庫車両, 標準製品には2時間以内の配送が可能です.
三段階検査システムの導入—初期材料検査, 進行中検査, および最終検査.
大量の在庫と迅速な納品, 100%の製品検査による期限内納品の確保.
適用範囲
さまざまな業界で好まれる選択肢.
FAQ
1. What is a Metal Stamping Die Guide Post used for?
A Metal Stamping Die Guide Post is used to accurately align the upper and lower sections of a stamping die. It helps maintain precision during stamping operations, 部品の摩耗を低減します, and improves overall tooling performance.
2. What materials are commonly used for guide posts?
Guide posts are typically manufactured from high-quality bearing steel such as SUJ2 or GCr15. These materials provide excellent hardness, 耐摩耗性, and long service life in demanding industrial applications.
3. Can guide posts be customized to specific requirements?
はい. カスタム直径, 長さ, 取り付けスタイル, 表面処理, and tolerance requirements can be manufactured according to customer drawings or application specifications.
4. What industries use Metal Stamping Die Guide Posts?
These guide posts are widely used in automotive manufacturing, 電子機器生産, home appliances, 航空宇宙部品, 金属加工, 産業機械, 精密工具産業.
5. How do I choose the correct guide post size?
The appropriate size depends on the die structure, 荷重要件, operating speed, and tooling dimensions. Technical drawings or application details can help determine the most suitable guide post specification.
