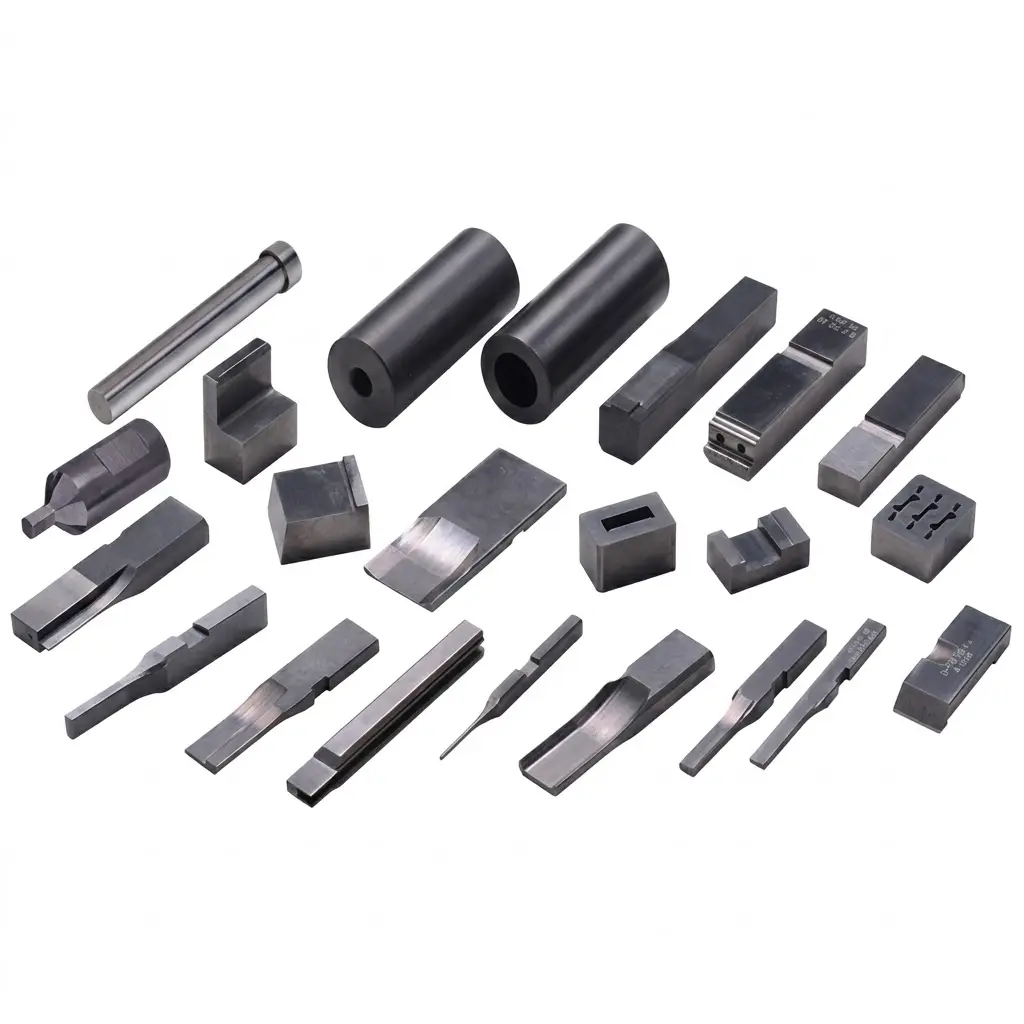

タングステンカーバイドパンチ – 高性能プレス加工用の精密カーバイドパンチ
私たちの タングステンカーバイドパンチ is precision‑manufactured for demanding stamping, ピアス, and forming applications in metal and mold production. Made from high‑density tungsten carbide material, this punch delivers exceptional wear resistance, outstanding hardness, そして長期の勤続, outperforming conventional tool steels in high‑cycle operations.
- Superior Material: Engineered from premium tungsten carbide, known for extreme hardness and superior wear resistance in precision tooling.
- 高精度: Tight machining tolerances ensure consistent performance and dimensional accuracy for critical stamping operations.
- 工具寿命の延長: Excellent compressive strength and abrasion resistance extend tool life and reduce tooling changeovers, improving productivity in medium‑ to high‑volume runs.
- カスタマイズ可能: Available in a variety of sizes, 形状, and specifications to match your die set design and production requirements.
- Wide Applications: 自動車に理想的です, 電子機器, 航空宇宙, ハードウェア, and precision mold industries where durability and repeatability are essential.
製品説明
私たちのプレミアム タングステンカーバイドパンチ (also known as cemented carbide punch) is engineered for the most demanding manufacturing environments. Made from 100% virgin tungsten carbide raw materials, these punches offer exceptional hardness, unparalleled wear resistance, and outstanding impact strength.
Whether you are involved in high-speed metal stamping, 自動車部品製造, cold heading, or precision electronics packaging, our tungsten carbide punches deliver an extended service life—標準的な鋼製パンチを10〜50倍も上回る性能, drastically reducing your machine downtime and production costs.
Whether for one‑off precision tooling or large‑scale stamping production, our タングステンカーバイドパンチ delivers the reliability and performance your tooling demands. Contact us for custom configurations, 材料オプション, and technical support tailored to your application.
技術仕様
| 性質 / パラメータ | 仕様範囲/詳細 |
| 製品名 | タングステンカーバイドパンチ/セメントカーバイドパンチピン |
| 材料等級 | Custom options (例えば, YG15, YG20, YG20C, KG7, CD650, or equivalent) |
| 硬度 | HRA 88.5 – HRA 92.5 (Depending on the specific grade) |
| Cobalt (Co) Content | 6% – 15% (Optimized for impact vs. 耐摩耗性) |
| 表面粗さ | Ra 0.1 μm – Ra 0.4 μm (Mirror polishing available) |
| 耐性 | 外径: ±0.002mm | 長さ: ±0.005mm |
| 同心率/直線性 | Up to 0.002mm |
| コーティング (オプション) | 用途要件に基づく無コーティング/TiN/TiAlN/DLCコーティング |
品質管理 & Processing Capabilities
To ensure every single piece meets the highest industry standards, our factory utilizes top-tier manufacturing and testing equipment:
Processing Equipment: Sodick Wire Cut EDM, CNC Cylindrical Grinders, PG (Optical Profile Grinders), and precise lathing machines.
100% Quality Inspection: Every punch undergoes rigorous inspection including Dimension Checks (Micrometer/Caliper), Projector Measurement, and Mitutoyo Roughness Testers before packaging.
産業応用
Our Tungsten Carbide Punches are widely implemented across the following fields:
Metal Stamping & Pressing: High-speed progressive dies for sheet metal, 銅, およびステンレス鋼.
自動車産業: Manufacturing of high-precision auto components, fasteners, and connectors.
電子機器 & Semiconductors: Precision lead frames, micro-connector pins, and terminal stamping.
Battery Manufacturing: Piercing and forming tools for lithium-ion battery shells and caps.
Hardware & Fastener Forming: Cold heading punches for nuts, bolts, and rivets.
